DB9 RS232 Connector D-SUB 9 Pin Male Female Plug RS485 Breakout Terminals 21-24 AWG Wire Solderless Connectors

DB9 serial COM transfer-free solder terminals RS232 female male connector with back side screw nut D-SUB solderless connectors
Specification:
Product Name: DB9 Solderless Connectors
Product Material: Environmental Protection Engineering Plastic

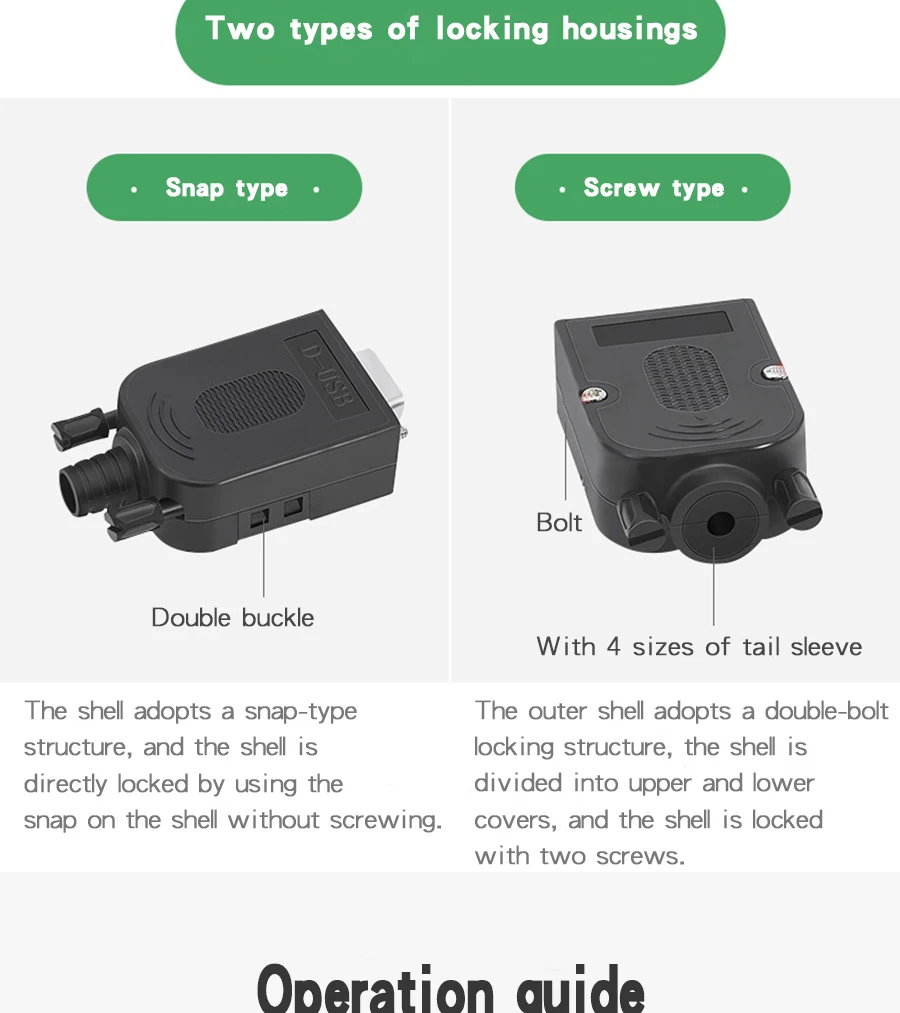

Product Type: DB9 Screw Female/DB9 Screw Male/DB9 Nut Female/DB9 Nut Male
Use for RS232/485/422 DB9 serial communication equipment,such as PLC, Touch screen,
Programmer,Data converter and so on.
Product Detail:
1DB9 Male(9pin)
2DB9 Female(9pin)
1.DCD (Data Carrier Detect)
2.RXD (Received Data)
3.TXD (Trasmitted Data)
4.DTR (Rata Terminal Ready)
5.GND(Signal Ground)
6.DSR(Data Send Ready)
7.RTS(Request to Send)
8.CTS(Clear to Send)
9.RI(Ring Indicator)
