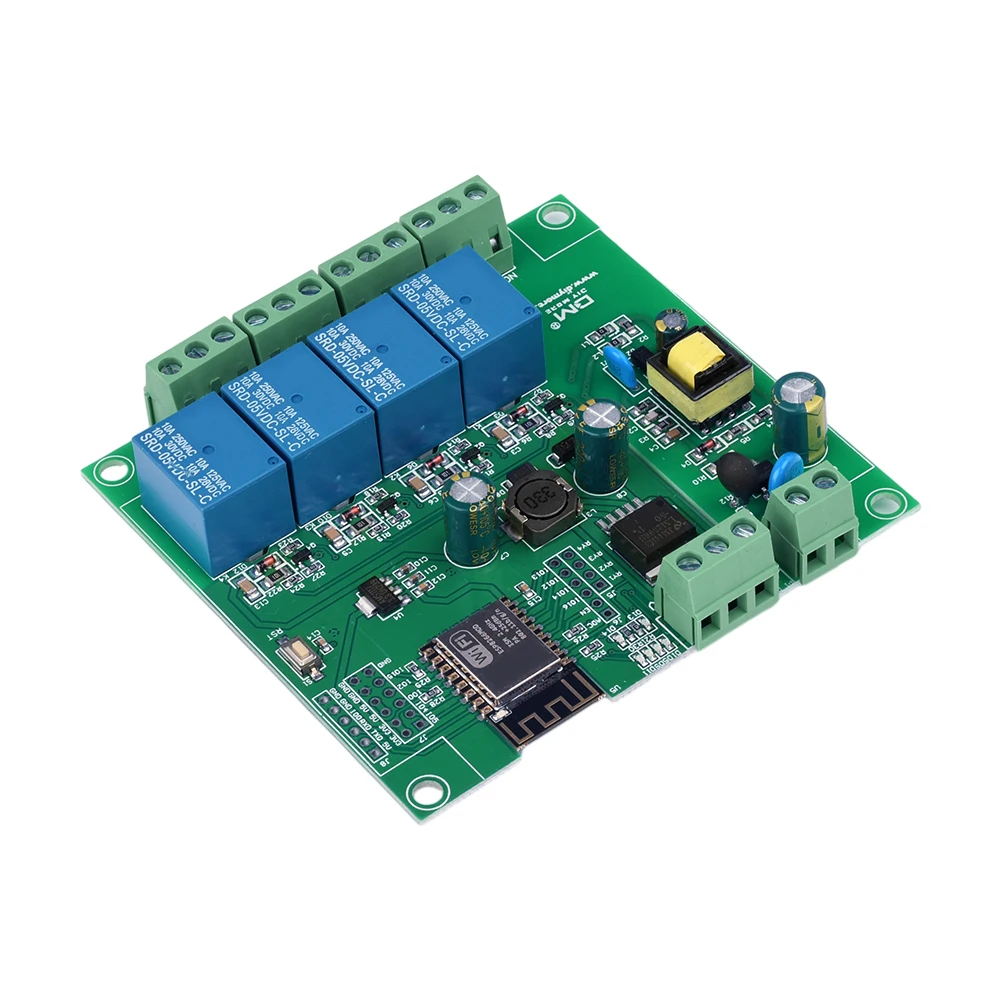

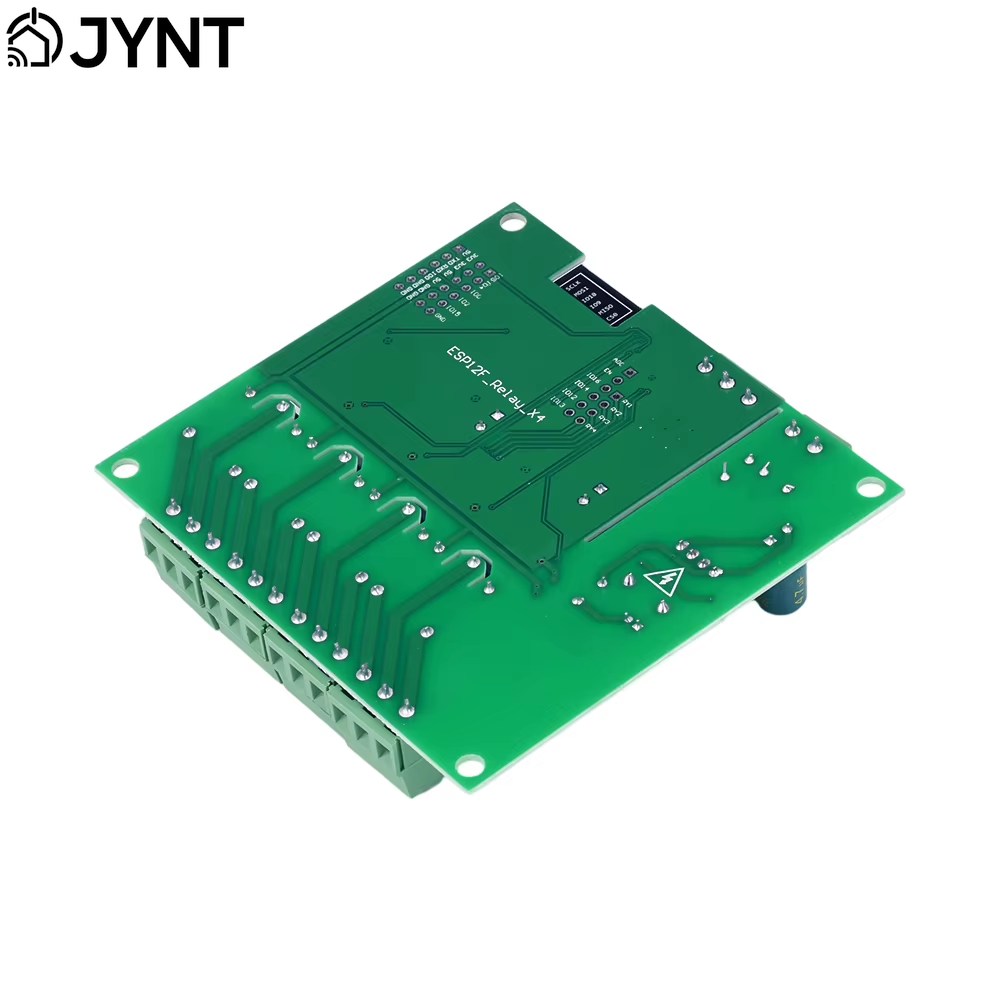

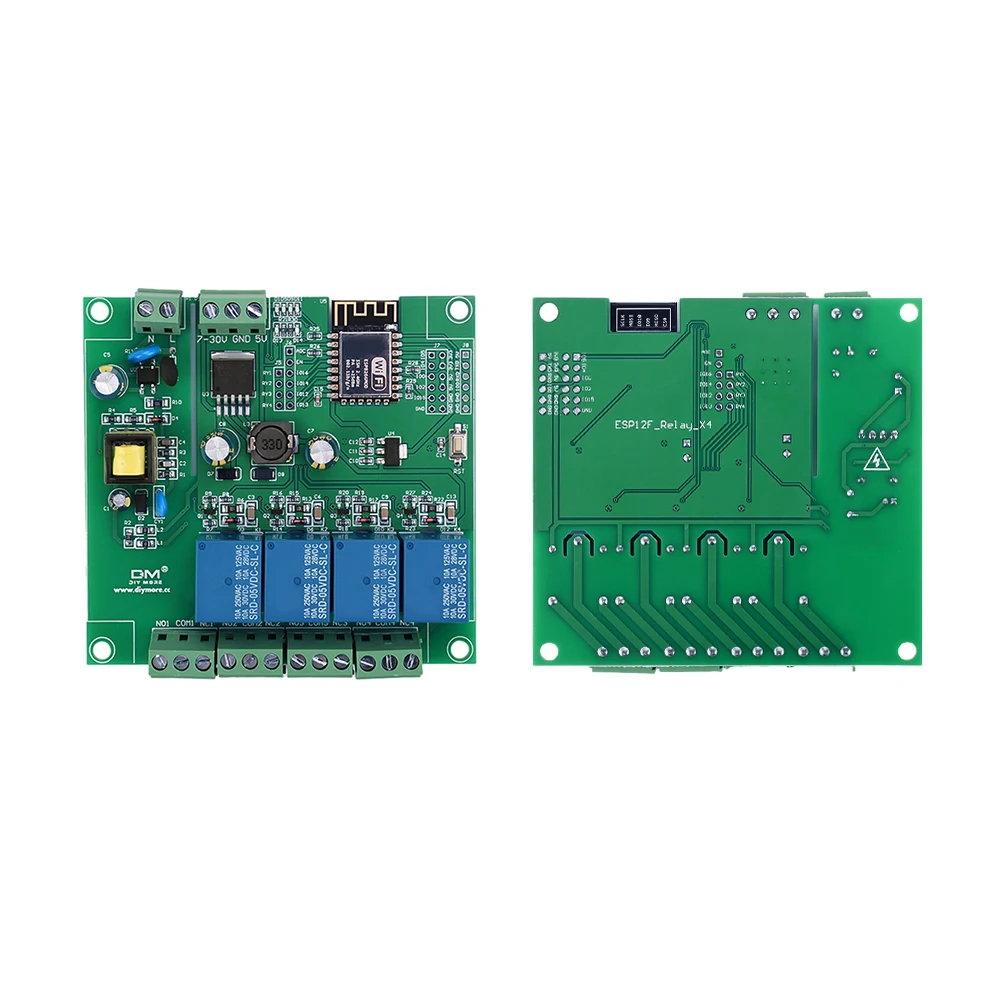

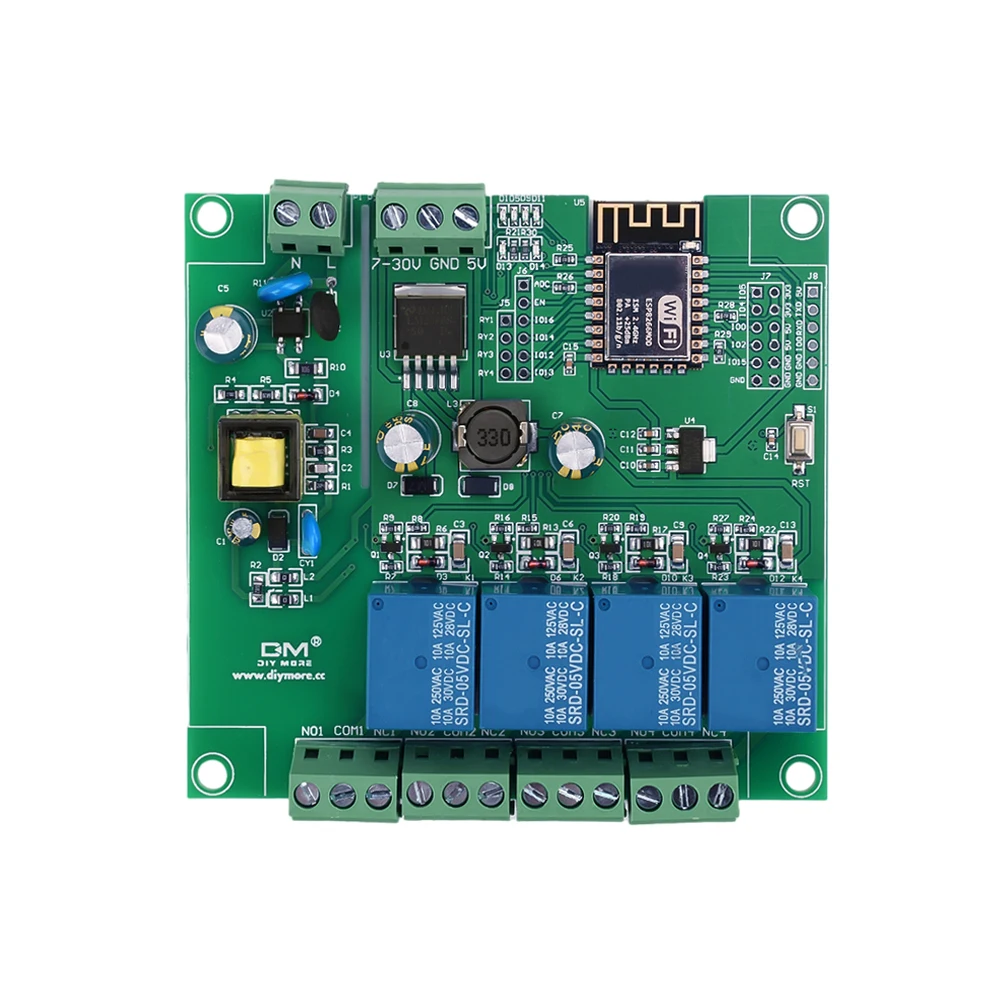

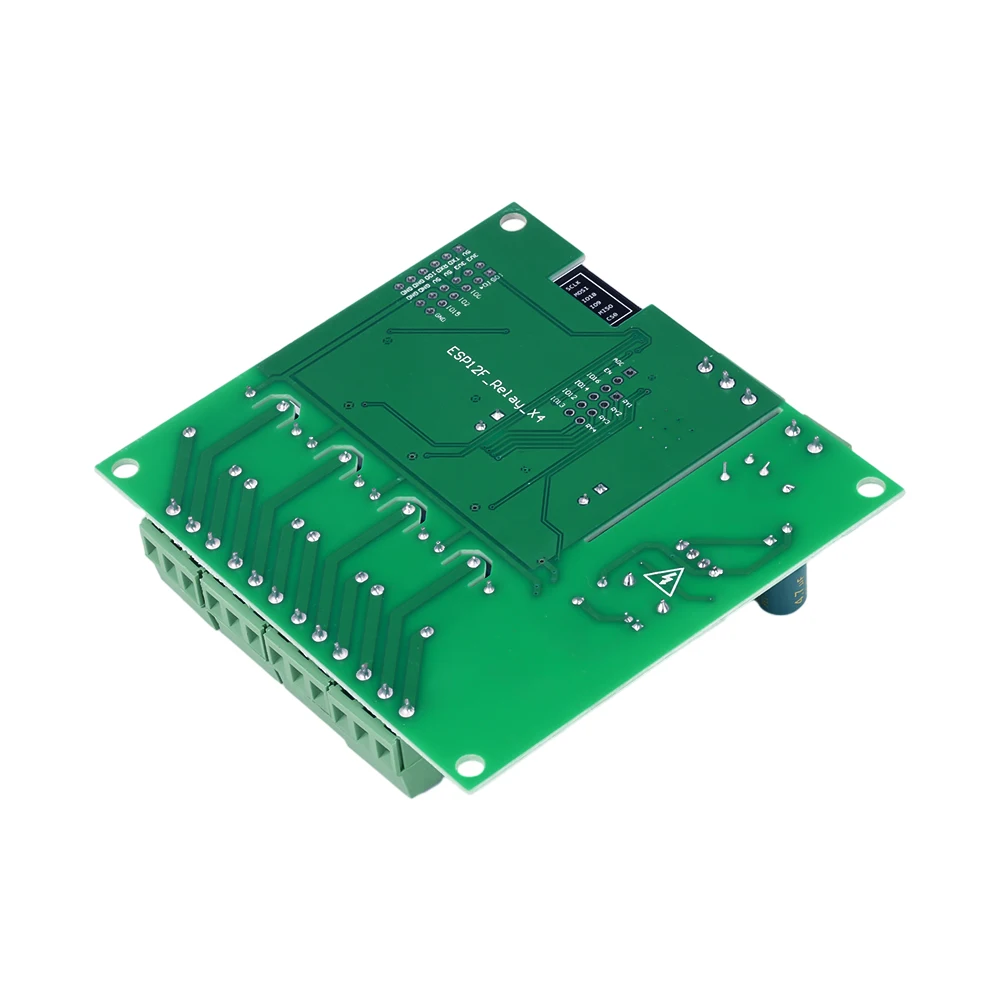

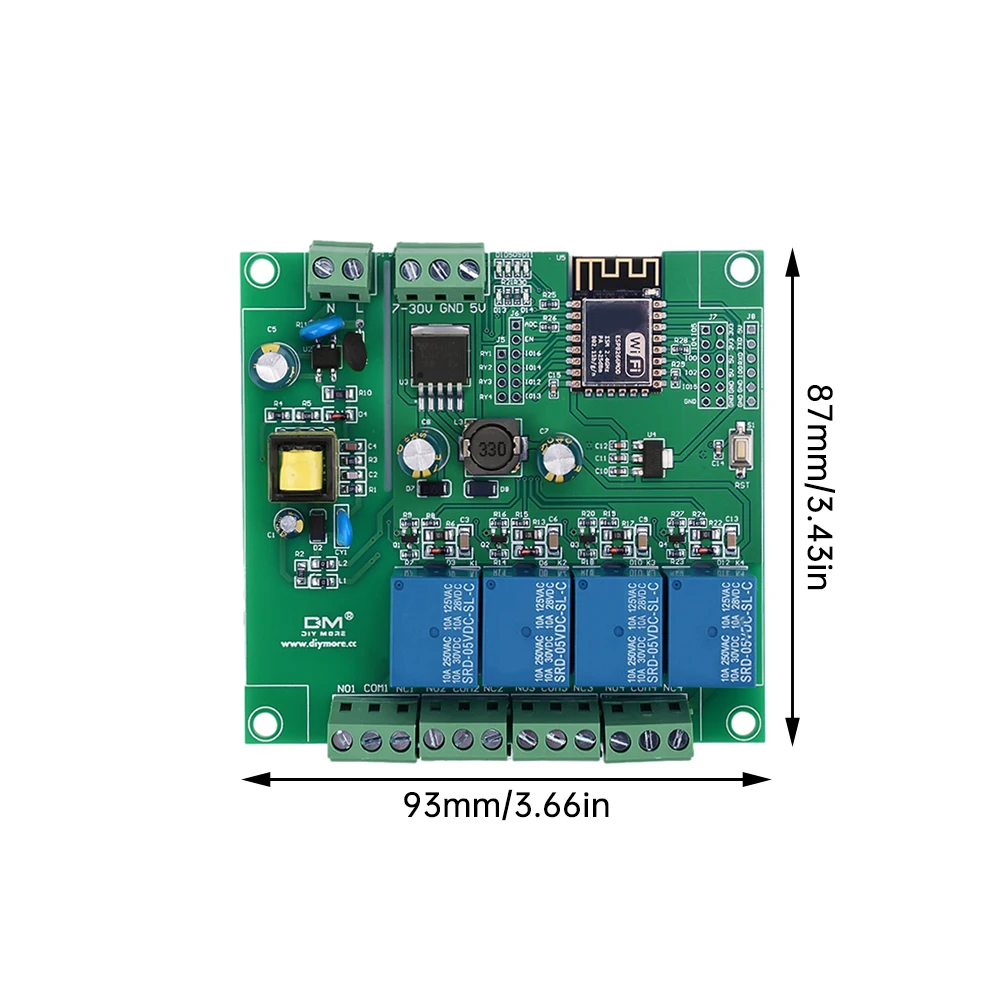

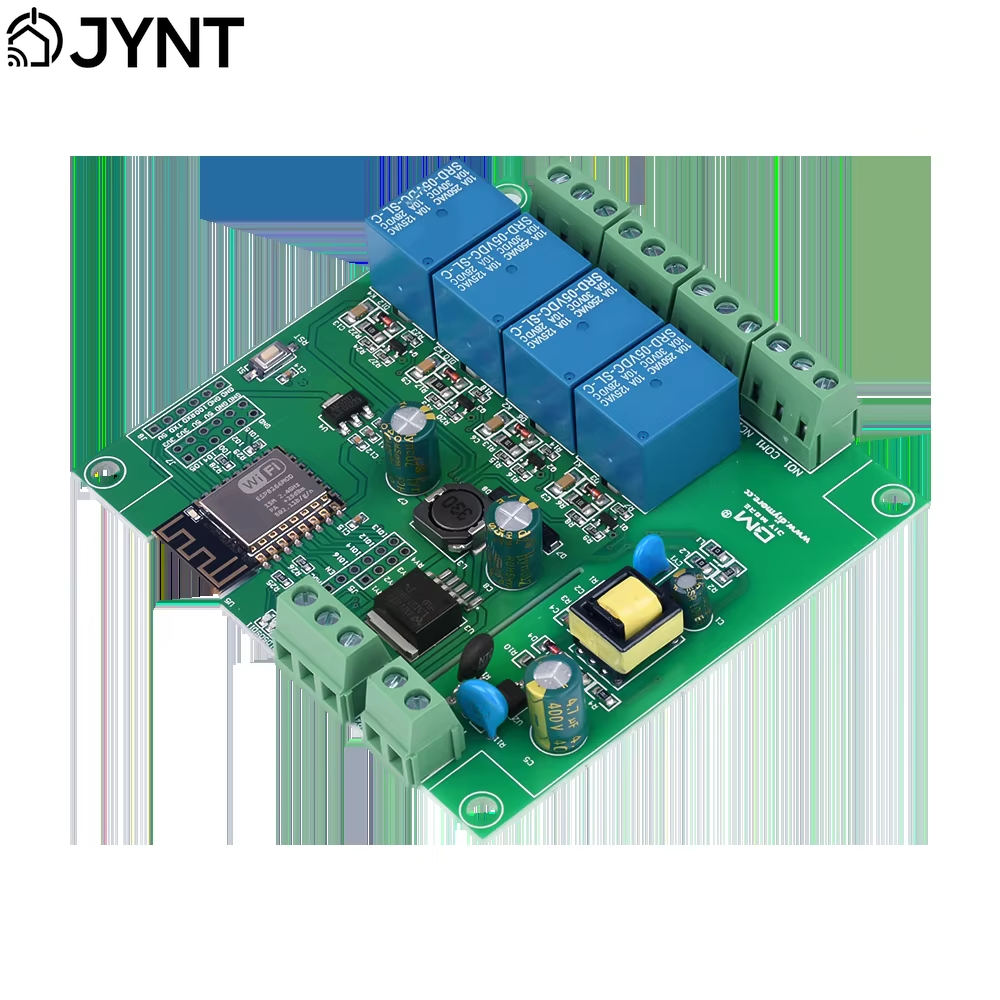

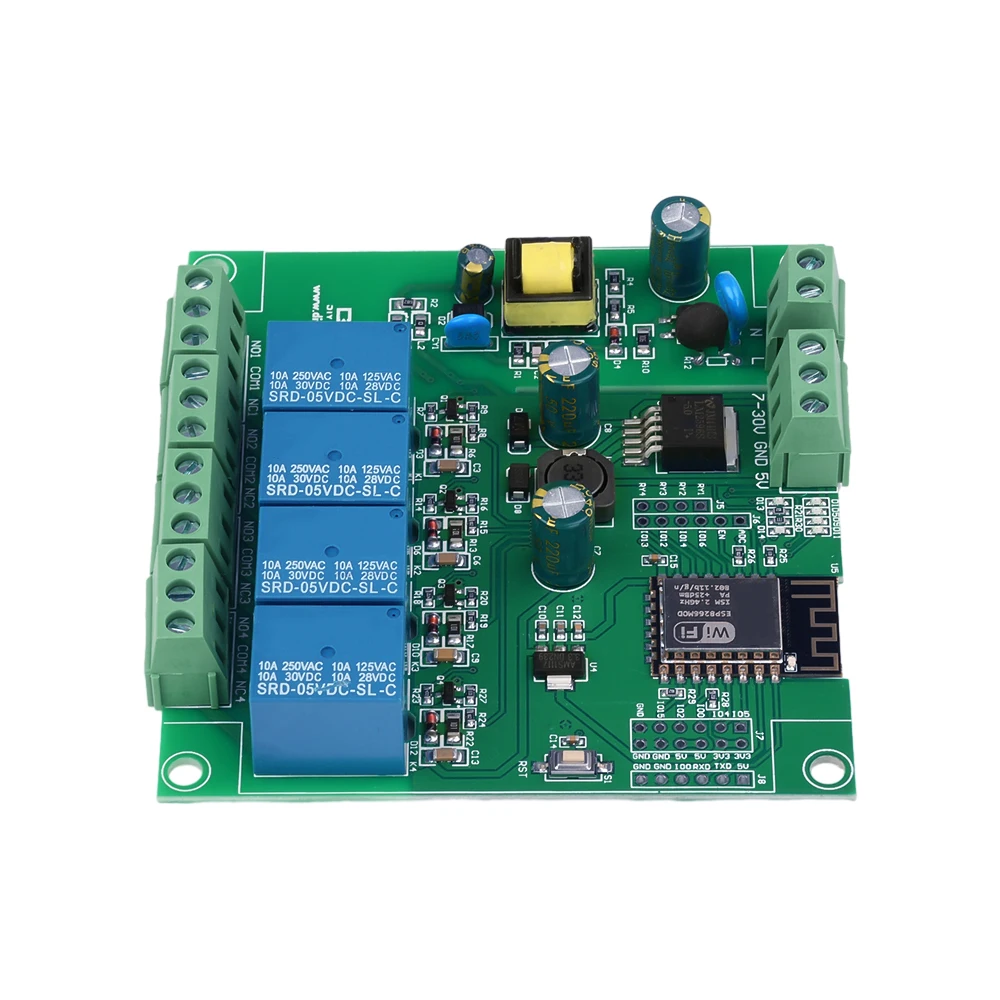

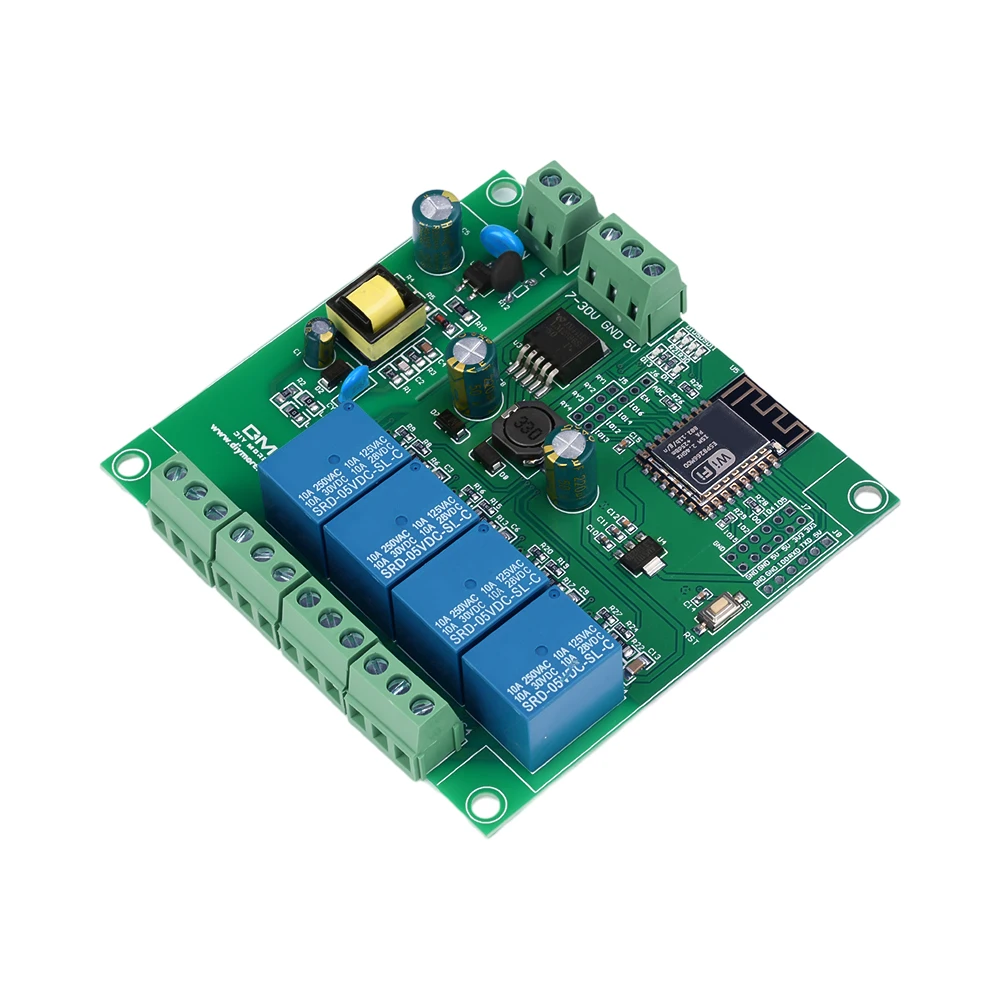

ESP8266 Wireless WIFI Relay Module 4-Channel (eWelink/Tasmota)

£14.79 GBP

~~£0.00 GBP~~ £14.79 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color Relay Module

Firmware eWeLink Tasmota

Quantity

• 4-Channel Relay Module :The ESP8266 Wireless WIFI Relay Module features a 4-channel design, allowing for multiple devices to be connected and controlled from a single source.

• Versatile Voltage Regulator :This product serves as a versatile voltage regulator, operating effectively in AC/DC 5V/7-28V/5-80V/5-80V ranges, making it suitable for a wide range of applications.

• E-WeLink APP Remote Control :The ESP-12F Development Board comes with E-WeLink APP remote control functionality, allowing for easy and convenient operation and control.

• Wireless WIFI Connection :Equipped with wireless WIFI connectivity, this module ensures seamless communication and control, enhancing the user experience.

• Development Board Feature :This product also functions as a development board, providing a platform for developers to create and test new applications and technologies.

Product features:

1, mature and stable on-board ESP-12F WIFI module, large capacity 4M BYTE FLASH;

2, WIFI module I/O port and UART program download port are all drawn out, convenient for secondary development;

3, onboard AC-DC switching power module, power supply mode supports AC90-250V/DC7-30V/5v;

4, onboard WIFI module RST reset button

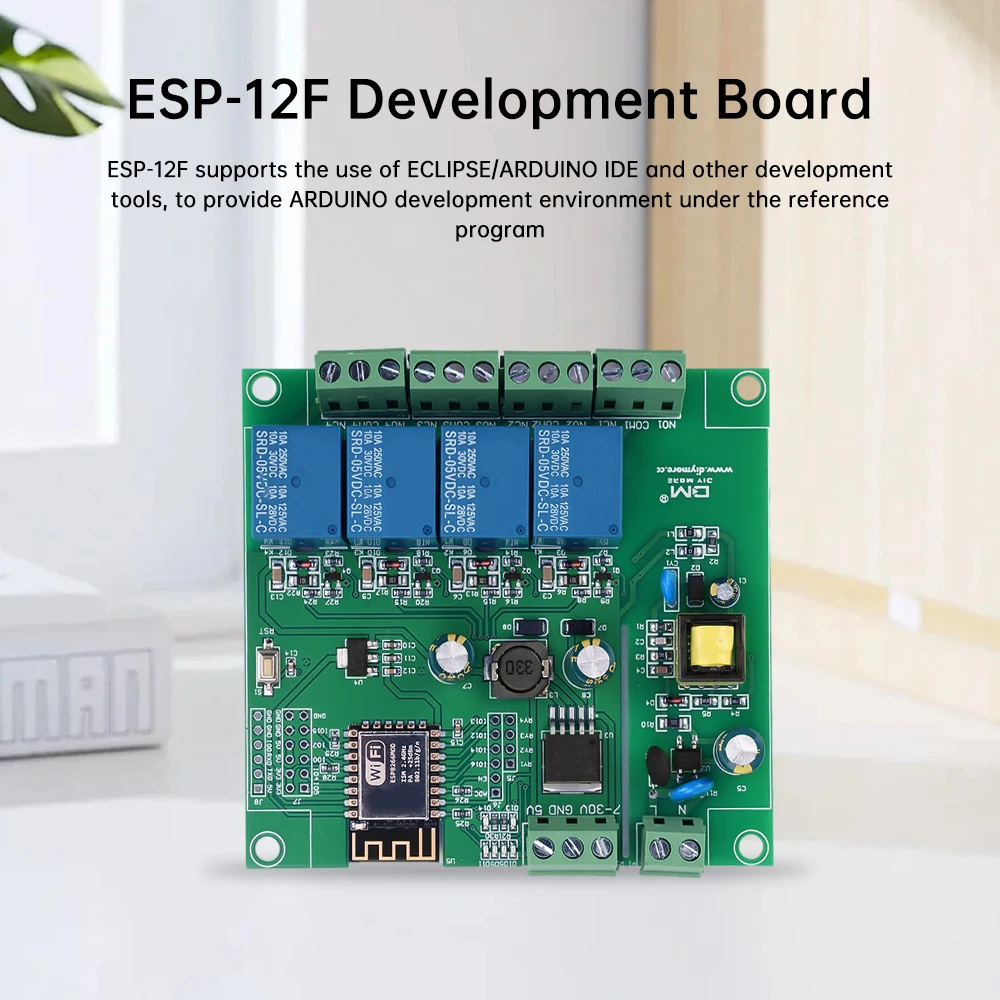

5. ESP-12F supports development tools such as ECLIPSE/ARDUINO IDE and provides reference programs under ARDUINO development environment;

6, 4 on-board 5V relay, output switching signal, suitable for control control voltage AC250V/Dc30V within the load;

7, onboard power indicator, 1 programmable LED and relay indicator.

Interface description

The GND, RX, TX, 5V of ESP8266 are connected to the GND, TX, RX, 5V of the external TTL serial port module respectively. IO0 should be connected to the GND when downloading, and the connection between IO0 and GND should be disconnected after downloading.

Relay output:

NC: Normally closed end, the relay is short-connected with COM before suction, suspended after suction;

COM: public terminal;

NO: usually start, the relay is suspended before suction, and shorted with COM after suction. This section describes GPIO outgoing ports

Product list:

1X relay module
